Overview
The 1U Solar Panels from CubeSat Aerospace are high-efficiency power generation modules designed for small satellites. These flight-ready panels integrate solar cells, magnetic torquers, and sun sensors into a compact PCB form factor, directly interfacing with the avionics system for streamlined CubeSat power and attitude operations.
Technical Specifications
Structure:
- Panel Type: Custom PCB-based solar panel
- Solar Cells: Mono-crystalline high-efficiency cells
- Output Voltage: 11.5 V (regulated via avionics board)
- Power Output: Up to 1 W per panel (depending on illumination)

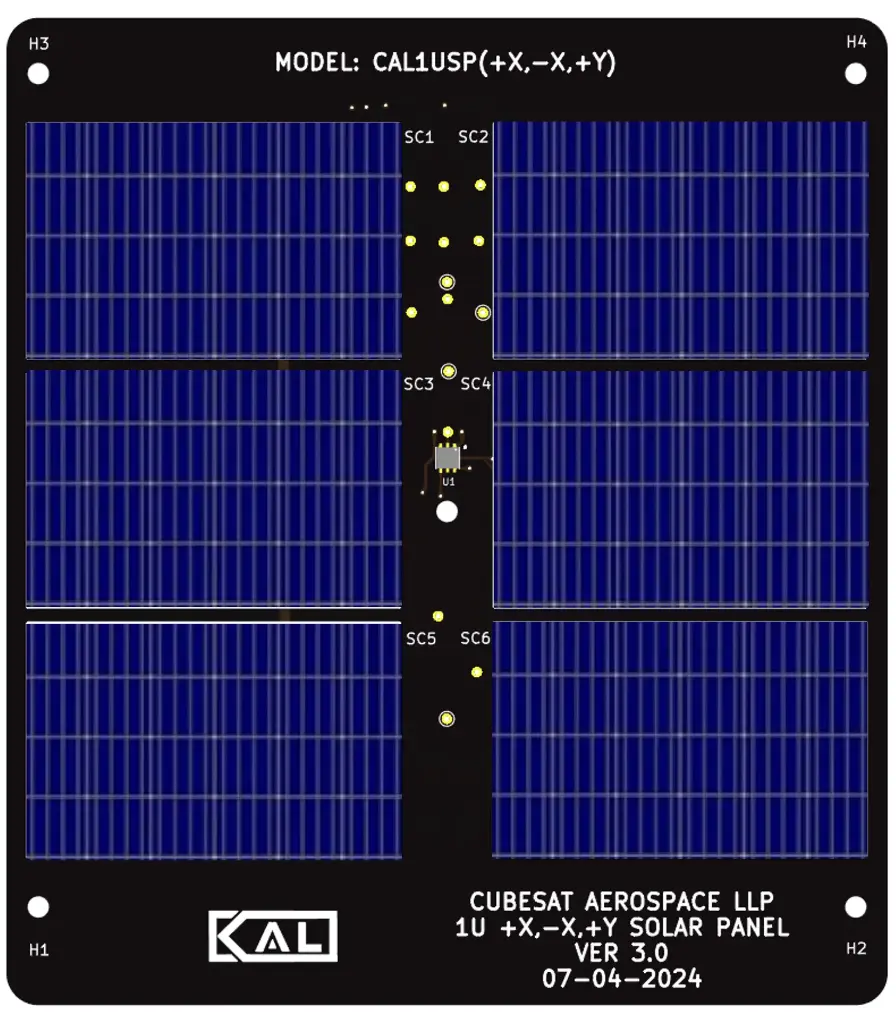

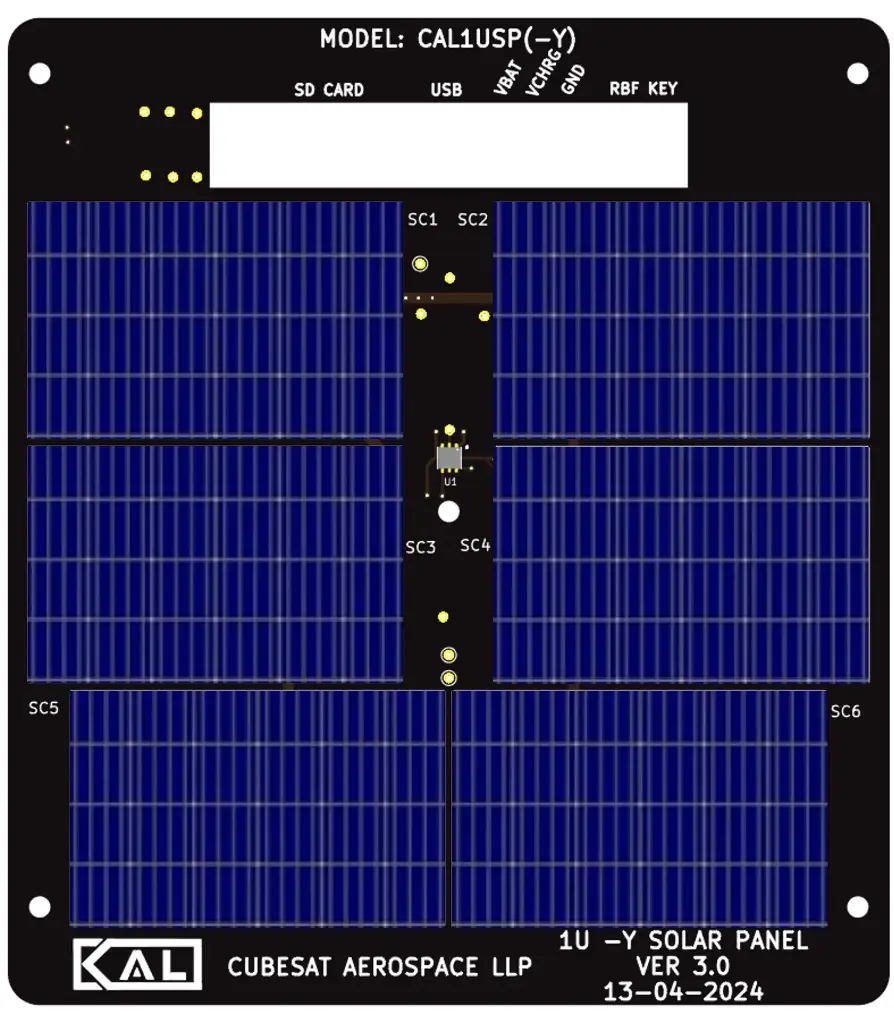

- Mounting Faces: X+, X–, Y+, Y–, Z+, Z– (6 panels for full 1U coverage)
- Connectors: 10-pin FFC connector for each panel
- Integrated Components:
- Thin-film magnetic torquer coil (1 per panel)
- Analog sun sensor (1 per panel)
- Dimensions: Sized to fit standard 1U CubeSat side panels
- Material: Rigid PCB with space-grade conformal coating
Description
Designed specifically for 1U CubeSats, these solar panels offer more than just power—they integrate attitude control and sun sensing in a lightweight, low-profile assembly. Each panel includes a magnetic torquer coil and sun sensor routed to the avionics board via FFC, reducing wiring complexity and improving system reliability. Optimized for high solar efficiency and full 6-face coverage.
Key Benefits
- High-efficiency mono-crystalline solar cells
- Integrated magnetic torquer and sun sensor on every panel
- 6-sided coverage for consistent power generation
- FFC connection simplifies electrical integration
- PCB-based design ensures lightweight, low-profile deployment
- Compatible with CubeSat Aerospace's avionics system
Certifications & Testing
Certifications:
- Bench-tested for voltage, current, and continuity
- Functionally verified with CubeSat Aerospace avionics board
- Complies with PCB, connector, and layout standards for 1U CubeSats
- Flight-like integration verified in full-stack assembly tests
Support & Warranty
Content:
- One-year limited warranty against manufacturing defects
- Technical support available for power budgeting, wiring, and integration
